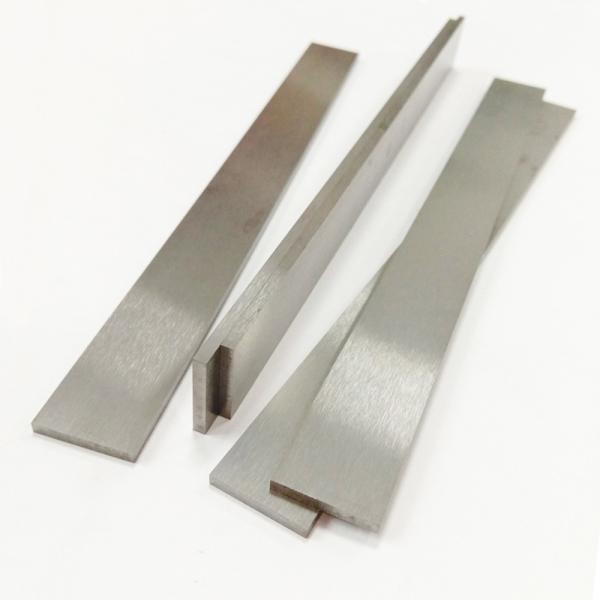

Ground Tungsten Carbide Flat Bar K10 Length 310mm Thickness 1.6mm

    Buy cheap Ground Tungsten Carbide Flat Bar K10 Length 310mm Thickness 1.6mm from wholesalers

    Buy cheap Ground Tungsten Carbide Flat Bar K10 Length 310mm Thickness 1.6mm from wholesalers
    • Buy cheap Ground Tungsten Carbide Flat Bar K10 Length 310mm Thickness 1.6mm from wholesalers
    • Buy cheap Ground Tungsten Carbide Flat Bar K10 Length 310mm Thickness 1.6mm from wholesalers

    Ground Tungsten Carbide Flat Bar K10 Length 310mm Thickness 1.6mm

    Ask Lasest Price
    Brand Name : TGC
    Model Number : Tungsten carbide strobe blanks
    Certification : ISO9001:2008 ISO14001:2004
    Price : negotiable
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 5000kgs per month
    Delivery Time : Standard products in one week
    • Product Details
    • Company Profile

    Ground Tungsten Carbide Flat Bar K10 Length 310mm Thickness 1.6mm

    Ground Tungsten Carbide Strobe Blanks 310mm Thickness 1.6mm K10 Carbide Strips​


    Carbide grade:

    ISO K10

    Cobalt: 6% WC 93.6

    Hardness HV3 1665-1835

    T.R.S ≥ 1600


    Dimension:

    Length: 310mm +0.5

    Width: 10 mm +0.15

    Thickness: 1.6mm +0.10 Ra 0.8


    Application: For machining cast iron with hardness higher than 200BH, short-chip for gable cast iron, silicon-aluminum alloy, copper alloy.


    Regular sizes for STB carbide strips

    W mmTol.T mmTol.L mmTol.Cut-to-length
    mm
    1.6+0.152.0+0.15310+325
    30
    35
    45
    50
    55
    60
    65
    70
    80
    100
    120
    1.8+0.152.0+0.15310+3
    2.0+0.152.0+0.15310+3
    2.5+0.152.0+0.15310+3
    2.6+0.152.0+0.15310+3
    2.7+0.152.0+0.15310+3
    2.8+0.152.0+0.15310+3
    3.0+0.152.0+0.15310+3
    3.3+0.152.0+0.15310+3
    3.5+0.152.0+0.15310+3
    3.6+0.152.0+0.15310+3
    3.7+0.152.0+0.15310+3
    3.8+0.152.0+0.15310+3
    3.9+0.152.0+0.15310+3
    4.0+0.152.0+0.15310+3
    4.2+0.152.0+0.15310+3
    4.5+0.152.0+0.15310+3
    4.8+0.152.0+0.15310+3
    5.0+0.152.0+0.15310+3
    5.3+0.152.0+0.15310+3
    5.5+0.152.0+0.15310+3
    6.0+0.152.0+0.15310+3
    6.5+0.152.0+0.15310+3
    8.0+0.152.0+0.15310+3

    General Carbide grades

    GradeCo %DensityHardnessT.R.SKA/mComPorosity
    g/cm3HV3 or HRAMPa%
    YG3315.20～15.40≥91.00≥140017.0～20.02.5～3.0A04 B02C00E00
    YG6614.85～15.05≥89.50≥180012.0～15.94.9～5.9A04 B02C00E00
    YG6X614.85～15.05≥91.00≥170019.2～25.74.9～5.9A02 B02C00E00
    YG87.814.65～14.85≥89.00≥190010.2～15.06.5～7.7A02 B02C00E00
    YG111114.30～14.50≥87.00≥20008.0～13.09.5～11.0A02 B02C00E00
    YG121214.21～14.41≥88.0≥25007.0～11.011.0～12.0A02 B02C00E00
    YG13C1314.10～14.3086.5～87.5≥23505.8～7.811.5～13.0A02 B02C00E00
    YG1514.913.95～14.15≥86.50≥22208.0～10.813.0～14.6A02 B02C00E00
    YG202013.45～13.65≥83.50≥24807.0～8.918.0～19.8A02 B02C00E00
    YB235814.64～14.741255～1385≥18108.3～9.37.2～8.0A02 B00C00E00
    YF06614.86～14.96≥1800≥210028.0～35.04.8～5.8A02 B02C00E00
    YL10.21014.40～14.551550～1650≥161018.9～22.08.0～9.5A02 B00C00E00

    Description of our carbide strips

    • 100% virgin material, no recycled material
    • Spray drying tower and HIP sintering furnace
    • Constant excellent quality
    • Large stock for all sizes, the regular products can be shipped in 3 days, and the special rods can be ground in one week.
    • 100% inspected before delivery. The inspection including raw material and dimension report will be sent to you before delivery
    • Excellent grinding quality, 0.15mm for raw sintered parts and 0.005-0.05 for grinding tolerance.

    What we can provide


    Ground Tungsten Carbide Flat Bar K10 Length 310mm Thickness 1.6mm


    Ground Tungsten Carbide Flat Bar K10 Length 310mm Thickness 1.6mm
