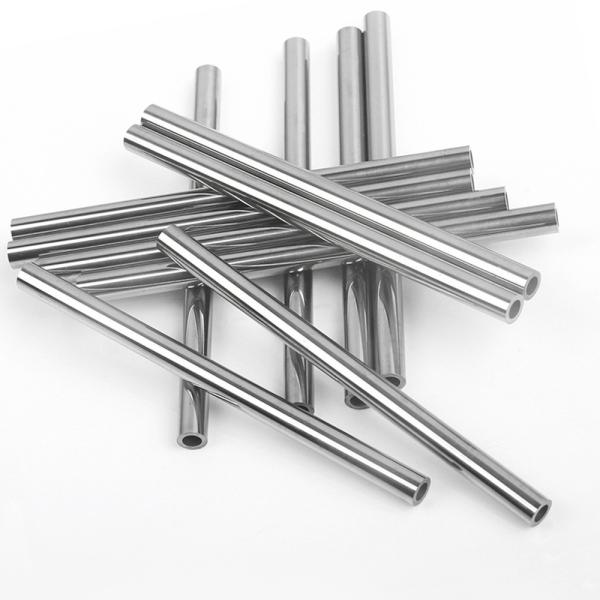

Small Single Straight Hole Tungsten Carbide Rod Blanks HRC 60 OD 5mm

Ask Lasest Price
Brand Name :	OUQI
Model Number :	Straight Coolant Rods
Certification :	ISO9001:2008 ISO14001:2004
Price :	negotiable
Payment Terms :	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :	5000kgs per month
Delivery Time :	Standard products in one week

Add to Cart

Product Details
Company Profile

Small Single Straight Hole Tungsten Carbide Rod Blanks HRC 60 OD 5mm

OD5mm small tungsten carbide straight hole rods for making drills for HRC 60 steel

ISO K10-k20

Cobalt: 12%

Outer diameter 5mm +0.3

Inner diameter: 1.5mm ±0.15

Length: 180mm +0.5 mm

Surface roughness: Raw sintered Ra 6.3 or as required

Application: ultrafine carbide grade for HSC machining of tempered steels up to 60 HRC, suitable for micro-tools and finishing tools and for a variety

Recommended Carbide grade

ISO CODE	U.S.CODE	Binder	Density	Hardness		Transverse	KIC
ISO CODE	U.S.CODE	g/cm3	Density	HV30	HRA	Mpa	Mpa.m1/2
K10-K20	C-2	12	14.1	1730	92.7	4600	9.8

Regular size for one central hole carbide rods:

Outer Diameter mm		Inner Diameter mm		Length mm
OD	Tol.	ID	Tol.	Length	Tol.
2.50	+0.2/+0.5	0.3	±0.1	330	0/+5.0
4.00	+0.2/+0.6	1.0	±0.15	330	0/+5.0
5.00		1.0	±0.15	330	0/+5.0
5.00		1.5	±0.15	330	0/+5.0
6.00		1.0	±0.15	330	0/+5.0
6.00		1.5	±0.15	330	0/+5.0
8.00		1.0	±0.15	330	0/+5.0
8.00		1.5	±0.15	330	0/+5.0
9.00	+0.3/+0.7	1.0	±0.15	330	0/+5.0
10.00		1.0	±0.15	330	0/+5.0
10.00		2.0	±0.2	330	0/+5.0
11.00		1.0	±0.15	330	0/+5.0
12.00		1.0	±0.15	330	0/+5.0
12.00		2.0	±0.2	330	0/+5.0
14.00		2.0	±0.2	330	0/+5.0
16.00	+0.4/+0.8	2.0	±0.2	330	0/+5.0
16.00		3.0	±0.25	330	0/+5.0
18.00		3.0	±0.25	330	0/+5.0
20.00		3.0	±0.25	330	0/+5.0
22.00		3	±0.25	330	0/+5.0
24.00		4	±0.30	330	0/+5.0
25.00		5	±0.35	330	0/+5.0

Regular size for two straight coolant holes carbide rods:

Outer Diameter mm		TK mm		Inner Diameter mm		Deviation of holes position≤(mm) a	Length mm
OD	Tol.	TK	Tol.	ID	Tol.	Deviation of holes position≤(mm) a	Length	Tol.
4.30	+0/+0.3	1.8	-0.4/0	0.800	±0.1	0.15	330	0/+5.0
5.30		2.0	-0.4/0	0.800	±0.1	0.20	330	0/+5.0
6.30		3.0	-0.5/0	1.000	±0.15	0.20	330	0/+5.0
7.30		3.5	-0.5/0	1.000	±0.15	0.20	330	0/+5.0
8.30		4.0	-0.6/0	1.000	±0.15	0.20	330	0/+5.0
9.30		4.0	-0.6/0	1.400	±0.15	0.20	330	0/+5.0
10.30		5.0	-0.6/0	1.400	±0.15	0.20	330	0/+5.0
11.30	+0/+0.4	5.0	-0.6/0	1.400	±0.15	0.28	330	0/+5.0
12.30		6.0	-0.6/0	1.750	±0.15	0.30	330	0/+5.0
13.30		6.0	-0.6/0	1.750	±0.15	0.34	330	0/+5.0
14.30		7.0	-0.6/0	1.750	±0.15	0.37	330	0/+5.0
15.30		8.0	-0.6/0	2.000	±0.2	0.37	330	0/+5.0
16.30		8.0	-0.6/0	2.000	±0.2	0.40	330	0/+5.0
17.30	+0/+0.6	9.0	-0.6/0	2.000	±0.2	0.47	330	0/+5.0
18.30		9.0	-0.6/0	2.000	±0.2	0.50	330	0/+5.0
19.30		9.0	-0.6/0	2.000	±0.2	0.50	330	0/+5.0
20.30		10.0	-0.8/0	2.500	±0.25	0.50	330	0/+5.0

General Tolerance for ground carbide rods

General tolerance for the h6 finished ground solid carbide rods
Diameter	Tolerance μm	Length	Tolerance	Straightness	Tolerance	Circularity	Tolerances
＜3.0	-6/0	＜100.0	+0.5/+1.0	＜4.0	0.07	<3,0	2,0 micron
3.0-6.0	-8/0	100.0-165.0	+1.0/+2.5	4.5-5.0	0.06	3,0- 6,0	2,5 micron
6.0-1.0	-9/0	165.0-335.0	+1.0/+6.0	5.5-12	0.05	6,1-10,0	3,0 micron
10.0-18.0	-11/0			＞12.5	0.04	10,1-18,0	3,5 micron
18.0-30.0	-13/0					18,1- 30,0	4,0 micron
30.0-50.0	-16/0					30,1- 50,0	5,0 micron

Our tungsten carbide rods:

100% virgin material, no recycled material
Spray drying tower and HIP sintering furnace
Constant excellent quality
Large stock for all sizes, the regular products can be shipped in 3 days, and the special rods can be ground in one week.
100% inspected before delivery. The inspection including raw material and dimension report will be sent you before delivery
Excellent grinding quality, Straightless and circularity could be 0.05 or 0.02.

Carbide grades

What we can provide

Small Single Straight Hole Tungsten Carbide Rod Blanks HRC 60 OD 5mm
