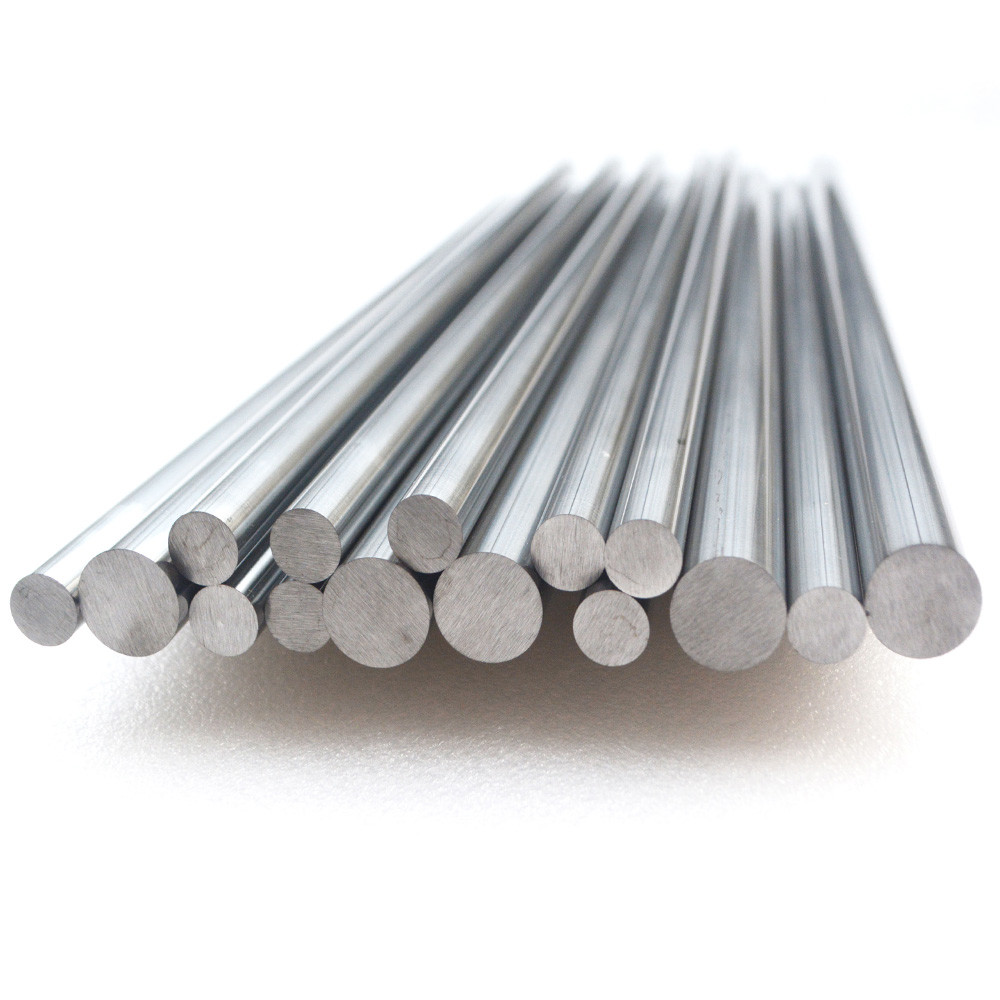

H6 Finished Ground K20 Tungsten Cabide Rods Polished Cemented Rods

Product Details:

Application: End mill/ Drills finished ground blanks

Diameter: Ø1.6- Ø40mm

Length: 330mm or cut-to-length

Circularity: 2μm-5μm

Straitness: 0.04-0.07

Surface roughness: Ra 0.02- Ra 0.4

Solid finished ground carbide rods are usually used for making endmills, and drills. Ouqi can provide precision ground rods in which the circularity and straightness could be 0.02mm and surface roughness can be Ra 0.02. With advanced equipment, the capacity could be 10,000kgs per month for the finished ground rods.

Feature:

With high hardness and wear/corrosion resistance, suitable for the manufacturing of various kinds of solid cemented carbide tools for the machining of heat-resistant alloy and Ti alloy.
--Dimension: diameter from 3-40mm, length from 38-330mm;
--with one coolant hole or two coolant holes or without coolant holes;
--ground and unground;

Grades for tungsten carbide rods:

Recommended Application

Zhuzhou TGC Cemented Carbide Co., Ltd. is a Sino-foreign joint venture established in 2013 and located in GECKOR Xinma Industrial Park in Tianyuan District, Zhuzhou, where there are well-developed traffic and logistics and modern standard workshops.

The company is mainly engaged in the processing and production of rods by employing Italian production lines and operations management mode experienced key technical personnel and Italian imported main processing equipment. We have passed the ISO9001 quality management system certification. Having at present monthly productivity of approx and cooperation established with famous Chinese cemented carbide manufacturers, we can offer rods, plates, buttons, discs, rotary burrs, and other profiled and non-standard cemented carbide products and blanks.

The company has since its establishment always stuck to technological innovations and aftersales services first, united, efficient and pragmatic management, the satisfaction of customer needs as the core of our business activities, and “Quality is the lifeline of a company &Service is the soul of our survival” as our tenet.
