10% Cobalt Solid Unground Carbide Rods K30 For Heat Resistant Alloy Steel

Ask Lasest Price
Brand Name :	OUQI
Model Number :	Unground Carbide Rods
Certification :	ISO 9001: 2015
Price :	negotiable
Payment Terms :	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :	5000kgs per month
Delivery Time :	Standard products in one week

Add to Cart

Product Details
Company Profile

10% Cobalt Solid Unground Carbide Rods K30 For Heat Resistant Alloy Steel

10% Cobalt High Strength 4100 Unground carbide rods K30 for heat resistant alloy steel

Specification:

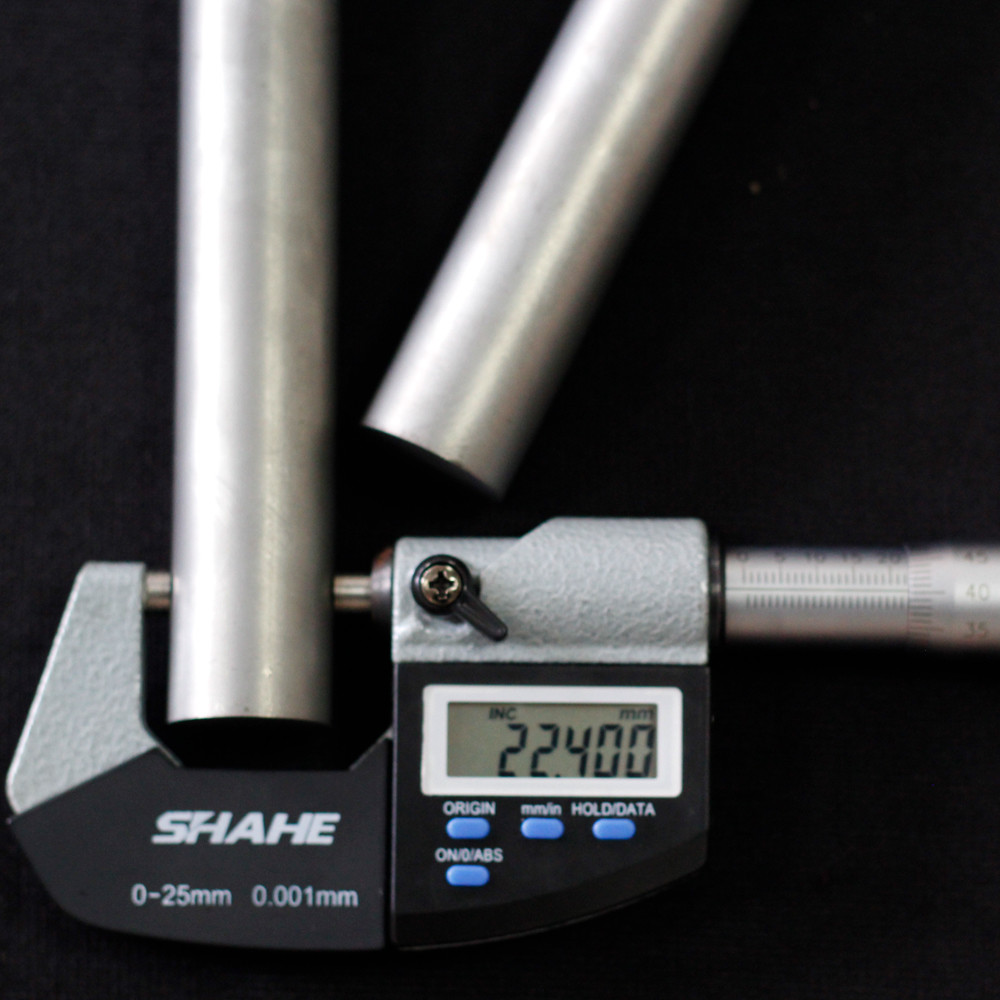

Unground Diameter: 22.5mm +0.5

Length 330mm +5mm or as required

Grade details:

ISO grade K30/K40

Grain size: 0.7μm

Density: 14.4

T.R.S 4100

HRA 91.9

Applications:

Medium speed processing, strong versatility, suitable to process carbon steel, alloy steel, stainless steel, nickel-based alloy, titanium alloy, heat-resistant alloy steel, cast iron, etc

10% Cobalt Solid Unground Carbide Rods K30 For Heat Resistant Alloy Steel

General tolerance for the raw sintered solid carbide rods
Diameter	Tolerance	Length	Tolerance	Straightness	Tolerance
0,5- 3,5	+0,25/+0,35	＜100.0	+0.5/+1.0	0,6-4	0,10
4,0- 6,0	+0,25/+0,40	100.0-165.0	+1.0/+2.5	4,5-8	0,12
6,5-12,0	+0,30/+0,45	165.0-335.0	+1.0/+6.0	8,5-12,0	0,15
12,5-16,0	+0,35/+0,50			12,5 - 20	0,20
16,5- 22,0	+0,40/+0,55			≥20,5	0,24
22,5-45,0	+0,45/+0,60

Description:

100% virgin material, no recycled material
Spray drying tower and HIP sintering furnace
Constant excellent quality
Large stock for all sizes
100% inspected before delivery
Fast delivery time, regular products can be shipped in 3 days.
Excellent grinding quality, Straightless could be 0.05 or 0.02.

Diameter mm		Length mm		Diameter mm		Length mm
D	Tolerance	Length	Tol.	D	Tolerance	Length	Tol.
1.16	-0/+0.15	330	0/+0.5	16.20	-0/+0.45	330	0/+0.5
1.65		330	0/+0.5	17.20		330	0/+0.5
1.80		330	0/+0.5	18.20		330	0/+0.5
2.20	-0/+0.20	330	0/+0.5	19.20		330	0/+0.5
2.70		330	0/+0.5	20.20		330	0/+0.5
3.25		330	0/+0.5	21.20	-0/+0.55	330	0/+0.5
3.70		330	0/+0.5	22.20		330	0/+0.5
4.20		330	0/+0.5	23.20		330	0/+0.5
4.70		330	0/+0.5	24.2		330	0/+0.5
5.20	-0/+0.25	330	0/+0.5	25.2	-0/+0.65	330	0/+0.5
5.70		330	0/+0.5	26.2		330	0/+0.5
6.20		330	0/+0.5	28.2		330	0/+0.5
6.70		330	0/+0.5	30.2		330	0/+0.5
7.20	-0/+0.35	330	0/+0.5	32.2		330	0/+0.5
7.70		330	0/+0.5
8.20		330	0/+0.5
8.70		330	0/+0.5
9.20		330	0/+0.5
9.70		330	0/+0.5
10.20		330	0/+0.5
10.70		330	0/+0.5
11.20		330	0/+0.5
11.70		330	0/+0.5
12.20		330	0/+0.5
12.70		330	0/+0.5
13.20		330	0/+0.5
13.70		330	0/+0.5
14.20		330	0/+0.5
14.70		330	0/+0.5
15.20		330	0/+0.5
15.70		330	0/+0.5

Grades for tungsten carbide rods:

10% Cobalt Solid Unground Carbide Rods K30 For Heat Resistant Alloy Steel
