    Kic 10 Cutting Ground Carbide Rods 12% Co For Non Ferrous Metals

    Ask Lasest Price
    Brand Name : OUQI
    Model Number : Ground carbide rods
    Certification : ISO9001:2008 ISO14001:2004
    Price : negotiable
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 5000kgs per month
    Delivery Time : Standard products in one week
    • Product Details
    • Company Profile

    Kic 10 Cutting Ground Carbide Rods 12% Co For Non Ferrous Metals

    12% Cobalt K40-K50 ground carbide rods with Kic 10 for cutting Nonferrous metals


    Carbide grade datasheet:

    ISO-RangeK40 - K50
    Chemical Data
    Co (%)12
    WC incl. Doping (%)88
    Physical Data
    Density (g/cm3)14.1
    Hardness
    HV 30 (N/mm2)1680
    HRA92.3
    Transverse Rupture Strength
    (N/mm2)> 4400
    KIc* (Shetty) (MNm-3/2)10
    Metallographic Data
    Porosity
    ≤10 μm A ≤ 02
    10 -25 μm B 00
    C 00
    Microstructure
    Tungsten Carbide α0.5 μm

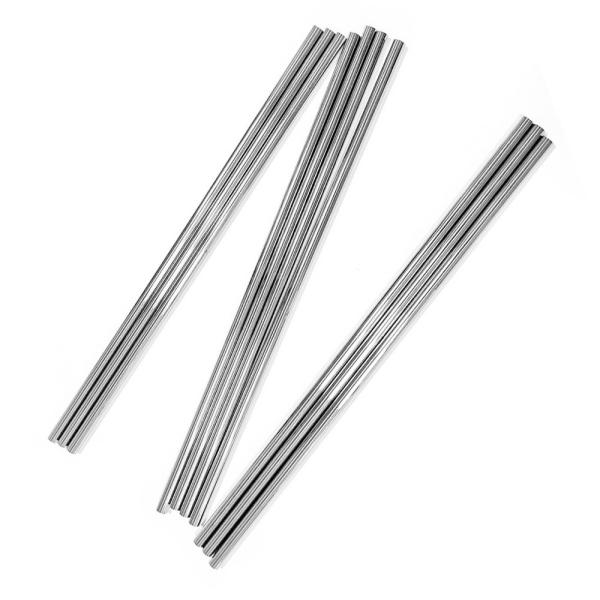

    Tungsten carbide diameter 6mm, and length in 330mm.


    Application:

    • Titanium alloys
    • Corrosion and heat resistant steels
    • Stainless steels

    Regular size for ground carbide rods:


    Diameter (mm)Length (mm)Diameter (mm)Length (mm)
    DToleranceLengthTol.DToleranceLengthTol.
    1.00+0/-0.0063300/+0.510.50+0/-0.0113300/+0.5
    1.503300/+0.511.003300/+0.5
    2.003300/+0.511.503300/+0.5
    2.503300/+0.512.003300/+0.5
    3.003300/+0.512.503300/+0.5
    3.503300/+0.513.003300/+0.5
    4.003300/+0.513.503300/+0.5
    4.50+0/-0.0083300/+0.514.003300/+0.5
    5.003300/+0.514.503300/+0.5
    5.503300/+0.515.003300/+0.5
    6.003300/+0.515.503300/+0.5
    6.503300/+0.516.003300/+0.5
    7.003300/+0.518.003300/+0.5
    7.503300/+0.520.003300/+0.5
    8.00+0/-0.0093300/+0.522.003300/+0.5
    8.503300/+0.524.003300/+0.5
    9.003300/+0.525.00+0/-0.0133300/+0.5
    9.503300/+0.528.003300/+0.5
    10.003300/+0.530.003300/+0.5
    32.00+0/-0.0163300/+0.5

    General Tolerance for ground carbide rods

    General tolerance for the h6 finished ground solid carbide rods
    DiameterTolerance μmLengthToleranceStraightnessToleranceCircularityTolerances
    ＜3.0-6/0＜100.0+0.5/+1.0＜4.00.07<3,02,0 micron
    3.0-6.0-8/0100.0-165.0+1.0/+2.54.5-5.00.063,0- 6,02,5 micron
    6.0-1.0-9/0165.0-335.0+1.0/+6.05.5-120.056,1-10,03,0 micron
    10.0-18.0-11/0＞12.50.0410,1-18,03,5 micron
    18.0-30.0-13/018,1- 30,04,0 micron
    30.0-50.0-16/030,1- 50,05,0 micron

    General tolerance for the h5 finished ground solid carbide rods
    DiameterTolerance μmLengthToleranceStraightnessToleranceCircularityTolerances
    ＜3.0-4/0＜100.0+0.5/+1.0＜4.00.07<3,02,0 micron
    3.0-6.0-5/0100.0-165.0+1.0/+2.54.5-5.00.063,0- 6,02,5 micron
    6.0-1.0-6/0165.0-335.0+1.0/+6.05.5-120.056,1-10,03,0 micron
    10.0-18.0-8/0＞12.50.0410,1-18,03,5 micron
    18.0-30.0-9/018,1- 30,04,0 micron
    30.0-50.0-11/030,1- 50,05,0 micron

    Our tungsten carbide rods:

    • 100% virgin material, no recycled material
    • Spray drying tower and HIP sintering furnace
    • Constant excellent quality
    • Large stock for all sizes, the regular products can be shipped in 3 days, and the special rods can be ground in one week.
    • 100% inspected before delivery. The inspection including raw material and dimension report will be sent you before delivery
    • Excellent grinding quality, Straightless and circularity could be 0.05 or 0.02.

    Carbide grades

    ClassificationK20-K40K15-K20K20-K40K20-K30K20K20K10K05-K10
    Co %10610128879
    WC incl. doping9094908892929391
    Density g/ cm314.514.9514.4514.0514.5514.614.714.35
    Hardness HV3015801620162016901720179018501920
    Fracture toughness119.910.610.49.59.69.69.3
    Transverse rupture strength41003200410042003800370035003800
    Average grain size0.71.20.60.50.70.60.70.2
