0.4 Grain Size Unground Carbide Rods K01 3% Co For Wooden Working

Ask Lasest Price
Brand Name :	OUQI
Model Number :	Unground Carbide Rods
Certification :	ISO 9001: 2015
Price :	negotiable
Payment Terms :	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :	5000kgs per month
Delivery Time :	Standard products in one week

Add to Cart

Product Details
Company Profile

0.4 Grain Size Unground Carbide Rods K01 3% Co For Wooden Working

K01 3% Co with 0.4 grain size unground carbide rods for wooden working

ISO Grade	Grain	Cobalt	Density	Hardness	T.R.S	Application
ISO Grade	um	%	g/cm3	HRA	N/mm2	Application
K01	0.5	3	15.1	94.5	2200	For the cutting of the timber such as shaving board, laminated board, density board and compound material etc.

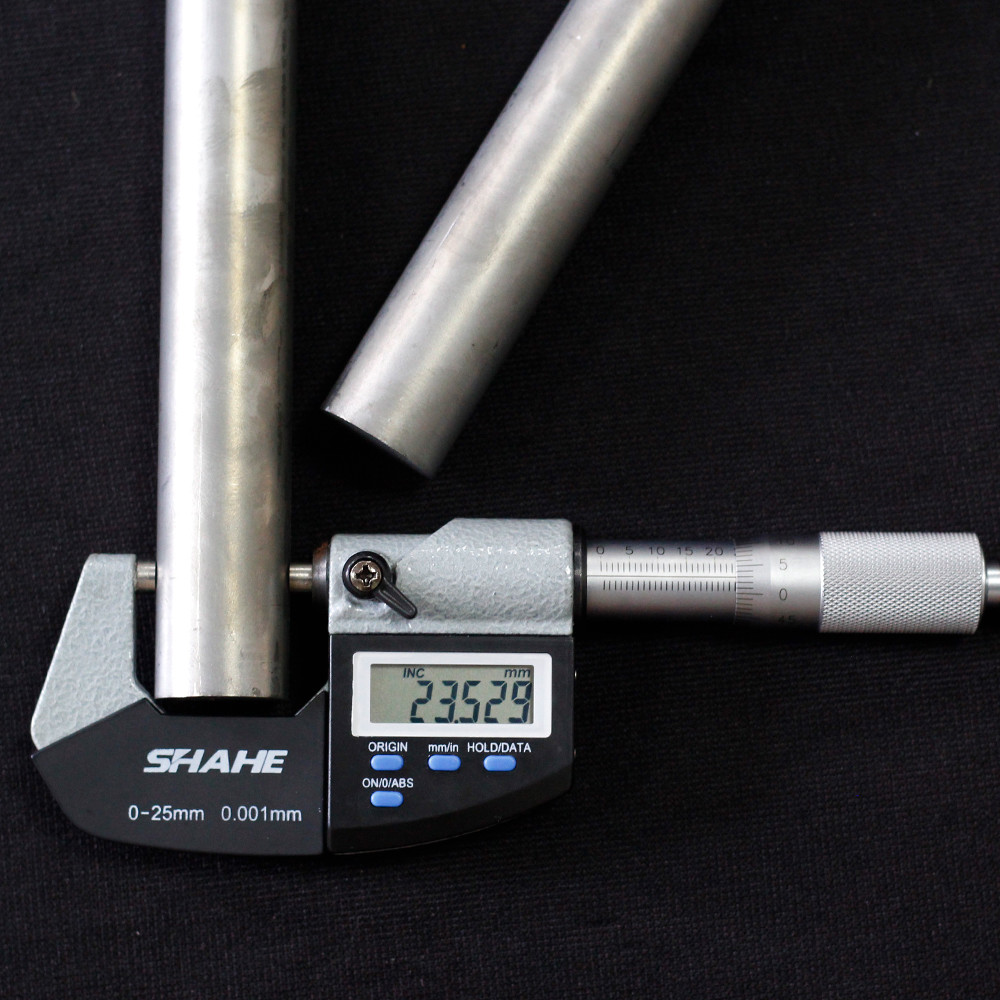

Unground Diameter: 23.5mm +0.5
Specification:

Length 330mm +5mm or as required

ISO grade K01

Grain size: 0.5μm

Density: 15.1

Applications:

Medium speed processing, strong versatility, suitable to process carbon steel, alloy steel, stainless steel, nickel-based alloy, titanium alloy, heat-resistant alloy steel, cast iron, etc

0.4 Grain Size Unground Carbide Rods K01 3% Co For Wooden Working

General tolerance for the raw sintered solid carbide rods
Diameter	Tolerance	Length	Tolerance	Straightness	Tolerance
0,5- 3,5	+0,25/+0,35	＜100.0	+0.5/+1.0	0,6-4	0,10
4,0- 6,0	+0,25/+0,40	100.0-165.0	+1.0/+2.5	4,5-8	0,12
6,5-12,0	+0,30/+0,45	165.0-335.0	+1.0/+6.0	8,5-12,0	0,15
12,5-16,0	+0,35/+0,50			12,5 - 20	0,20
16,5- 22,0	+0,40/+0,55			≥20,5	0,24
22,5-45,0	+0,45/+0,60

Description:

100% virgin material, no recycled material
Spray drying tower and HIP sintering furnace
Constant excellent quality
Large stock for all sizes
100% inspected before delivery
Fast delivery time, regular products can be shipped in 3 days.
Excellent grinding quality, Straightless could be 0.05 or 0.02.

Diameter mm		Length mm		Diameter mm		Length mm
D	Tolerance	Length	Tol.	D	Tolerance	Length	Tol.
1.16	-0/+0.15	330	0/+0.5	16.20	-0/+0.45	330	0/+0.5
1.65		330	0/+0.5	17.20		330	0/+0.5
1.80		330	0/+0.5	18.20		330	0/+0.5
2.20	-0/+0.20	330	0/+0.5	19.20		330	0/+0.5
2.70		330	0/+0.5	20.20		330	0/+0.5
3.25		330	0/+0.5	21.20	-0/+0.55	330	0/+0.5
3.70		330	0/+0.5	22.20		330	0/+0.5
4.20		330	0/+0.5	23.20		330	0/+0.5
4.70		330	0/+0.5	24.2		330	0/+0.5
5.20	-0/+0.25	330	0/+0.5	25.2	-0/+0.65	330	0/+0.5
5.70		330	0/+0.5	26.2		330	0/+0.5
6.20		330	0/+0.5	28.2		330	0/+0.5
6.70		330	0/+0.5	30.2		330	0/+0.5
7.20	-0/+0.35	330	0/+0.5	32.2		330	0/+0.5
7.70		330	0/+0.5
8.20		330	0/+0.5
8.70		330	0/+0.5
9.20		330	0/+0.5
9.70		330	0/+0.5
10.20		330	0/+0.5
10.70		330	0/+0.5
11.20		330	0/+0.5
11.70		330	0/+0.5
12.20		330	0/+0.5
12.70		330	0/+0.5
13.20		330	0/+0.5
13.70		330	0/+0.5
14.20		330	0/+0.5
14.70		330	0/+0.5
15.20		330	0/+0.5
15.70		330	0/+0.5

Grades for tungsten carbide rods:

lso	Grain	Cobalt	Density	Hardness	T.Rs	Application
Grade	um	%	glcm3	HRA	Nmm2
K01	0.5	3	15.1	94.5	2200	For the cutting of the timber such as shaing board laminated board do the boardgand the density board and compound material etc.
K20	0.8	8	14.65	92.5	3200	Sub-fne gain size, for hills and taps,f&r machining Grey cast iron, non ferrous metal,with good wear resistance.

K30-K40	0.8	10-10.2	14.3-14.4	91.5-92.0	3500-3800	It's used for making dill, end mills.suitatie for cutting general steel,Grey cast iron,stainless steel and heat resistant alloy.

K3o40	0.6	10月12日	14.1-14.2	92-92.5	3800-4000	ultrafine grain size,high cobaltl.good hardness and toughness,used or Imaking enall and reamar,especially suitate kr cutting steel,aluminum alloy and titanium


K30-x40	0.7	10	14.4	91.9	4100	Medium speed processing strong versatility.suitable to process carbon steel, alloy steel stainless steel nickel-based alloy, titanium alloy, heat-resistant alloy steel cast iron,etc


K30-K40	0.6	10	14.4	92.2	4100	Medium speed processing strong versatility,suitable to process carbon steel, alay steel,stainless steel nickel based alloy ,tanium alloy.heal-resistant alloy steel cast iron,etc.


K30-K50	0.4	2	14.05	92.6	4200	High-speed cuting medum-speed feed suitatle for processing gass lber materials, carbon steel, 304L stainless steel, nickel-based alloys, quenched steel.titanium-based alloys.composite materials, etc. suitate orHRC45-59 materials.



K20-K30	0.3	9	14.4	93.5	4000	Extremely high wear resistance and strengh,suitabe for high-hard materials (HlRC55 and aboue)fnishing 316L stainless steel, high-gloss surface treatment of aluminum alloy, ttanium alloy, stainless steel high-temperature alloy and cther dcult-to-machine materials composite wood.




K20-K30	0.4	6	14.7	94.1	3800	ultra-fine grains.suitable for making end mills and engaging cutters with high wear resistance requirements, suitable for processing PCB materials, acrylic materials and high hardness aluminum alloys.


K40-K50		15	13.96	89	4000	Good wear resistance and excellent toughness,suitable for making stamping dies anti-vibration boring bar etc.

What we can provide

0.4 Grain Size Unground Carbide Rods K01 3% Co For Wooden Working
