HRA 93.5 Helical Coolant Hole Rod Unground Carbide Blank Rods

Product Categories

Zhuzhou TGC Cemented Carbide Co.,Ltd.

Contact Now

Name: HRA 935 Helical Coolant Hole Rod Unground Carbide Blank Rods
Brand: OUQI
Price: 1 USD

Ask Lasest Price
Brand Name :	OUQI
Model Number :	Helical Coolant Rods
Certification :	ISO 9001: 2015
Price :	negotiable
Payment Terms :	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :	5000kgs per month
Delivery Time :	Standard products in one week

Add to Cart

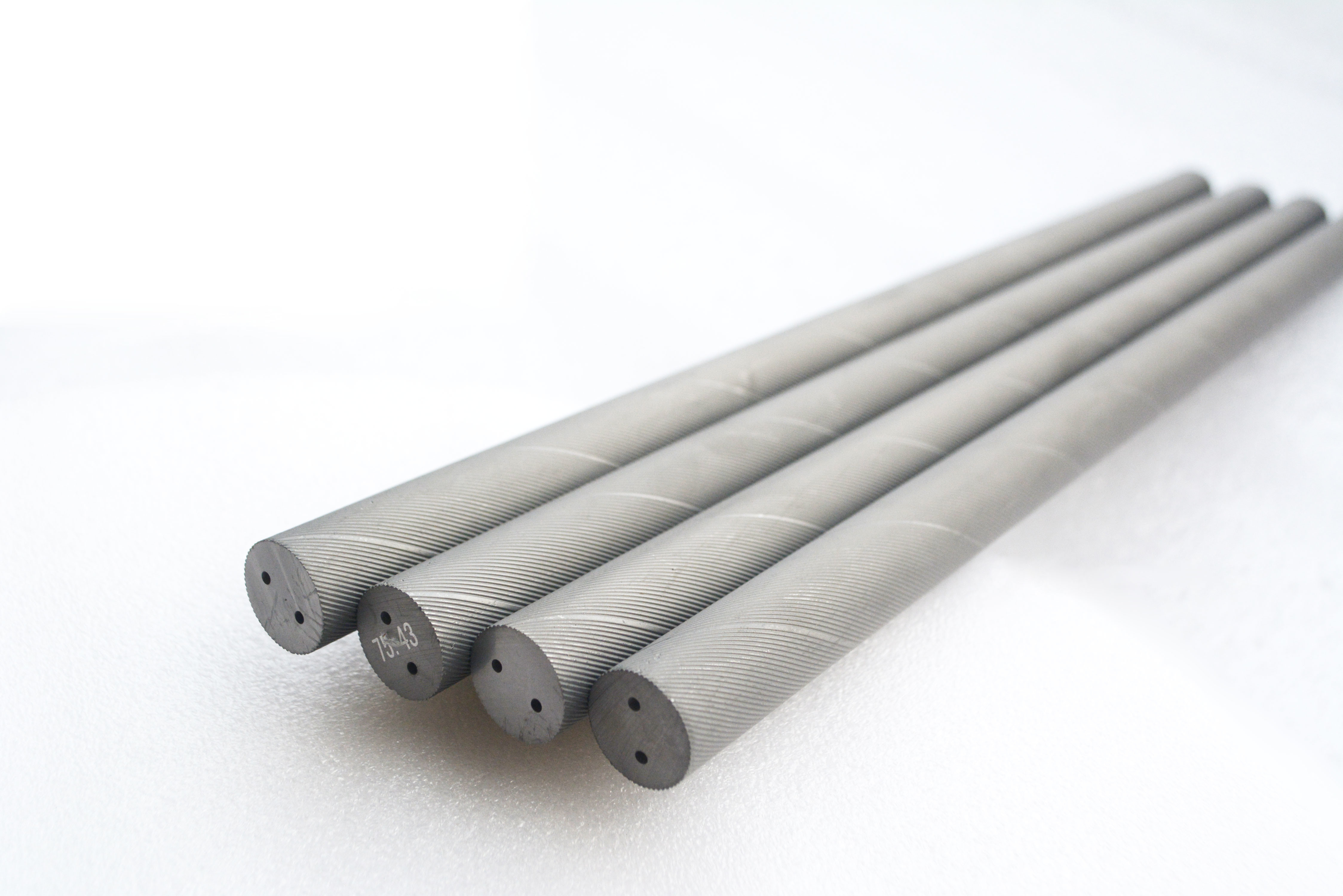

HRA 93.5 Tungsten Carbide Helical Coolant Holes Rods Unground Carbide Blank Rods

HRA 93.5 Helical Coolant Hole Rod Unground Carbide Blank Rods

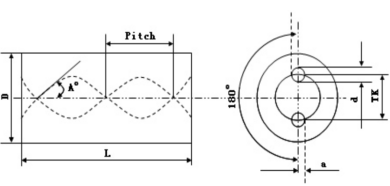

Specifications of OUQI Two Helical Coolant Holes Rods with 30°

Outer Diameter mm		TK mm		Inner Diameter mm		Deviation of holes position≤(mm) a	Pitch mm
OD	Tol.	TK	Tol.	ID	Tol.	Deviation of holes position≤(mm) a	P	Tol.
3.30	+0/+0.3	1.7	-0.3/0	0.400	±0.1	0.80	16.32	±0.23
4.30	+0/+0.4	2.2	-0.3/0	0.600	±0.15	0.80	21.77	±0.31
5.30		2.6	-0.4/0	0.700	±0.15	0.10	27.21	±0.38
6.30		2.6	-0.4/0	0.700	±0.15	0.13	32.65	±0.46
6.30		2.6	-0.4/0	1.000	±0.15	0.15	32.65	±0.46
7.30		3.7	-0.4/0	1.000	±0.15	0.15	38.09	±0.54
8.30		4.0	-0.4/0	1.000	±0.15	0.15	43.53	±0.62
8.30		3.5	-0.4/0	1.000	±0.15	0.15	42.53	±0.62
8.30		2.8	-0.4/0	1.000	±0.15	0.15	43.53	±0.62
9.30		4.8	-0.6/0	1.400	±0.15	0.20	48.97	±0.62
10.30	+0/+0.6	4.8	-0.6/0	1.400	±0.15	0.20	54.41	±0.77
10.30		2.6	-0.4/0	0.700	±0.15	0.20	54.41	±0.77
10.30		3.0	-0.4/0	1.000	±0.15	0.20	54.41	±0.77
10.30		5.0	-0.6/0	1.400	±0.15	0.20	54.41	±0.77
11.30		5.3	-0.8/0	1.400	±0.15	0.28	59.86	±0.85
12.30		6.3	-0.8/0	1.400	±0.15	0.30	65.3	±0.92
12.30		6.0	-0.8/0	1.750	±0.2	0.30	65.3	±1.00
13.3		6.5	-0.8/0	1.750	±0.2	0.34	70.74	±1.08
14.3		7.1	-0.8/0	1.750	±0.2	0.37	16.18	±1.08
14.3		3.5	-0.4/0	0.800	±0.15	0.37	76.18	±1.08
14.3		4.5	-0.6/0	1.400	±0.15	0.37	76.18	±1.08
15.3		7.7	-0.8/0	1.750	±0.2	0.4	81.62	±1.08
16.3		8.3	-0.8/0	1.750	±0.2	0.4	87.06	±1.23
16.3		8	-0.8/0	2.000	±0.2	0.4	87.06	±1.23
17.3		8.9	-0.8/0	1.750	±0.2	0.47	92.5	±1.31
18.3		9.55	-0.8/0	2.000	±0.2	0.5	97.95	±1.38
18.3		9.15	-0.8/0	1.750	±0.2	0.5	97.95	±1.38
19.3		10	-0.8/0	2.000	±0.2	0.5	103.39	±1.46
20.3		10.4	-1.0/0	2.000	±0.2	0.5	108.83	±1.54

Technical parameters:

General tolerance for the raw sintered solid carbide rods
Diameter	Tolerance	Length	Tolerance	Straightness	Tolerance
0,5- 3,5	+0,25/+0,35	＜100.0	+0.5/+1.0	0,6-4	0,10
4,0- 6,0	+0,25/+0,40	100.0-165.0	+1.0/+2.5	4,5-8	0,12
6,5-12,0	+0,30/+0,45	165.0-335.0	+1.0/+6.0	8,5-12,0	0,15
12,5-16,0	+0,35/+0,50			12,5 - 20	0,20
16,5- 22,0	+0,40/+0,55			≥20,5	0,24
22,5-45,0	+0,45/+0,60

Grades for tungsten carbide rods:

Recommended Application

Grade	Application
YF06	Suitable for machining composite materials, such as aluminum‐magnesium alloys, plastics, reinforced plastics, carbon, fiber, iron‐based alloys, etc. It is recommended for making big PCB drills of ф3.2‐6.3mm, micro drills of ф0.8‐3.2mm, micro-milling tools and reamers, etc.
YL10A	It is suitable for machining cast iron, aluminum alloys, etc. also for machining common steels. It is recommended for the drilling of cast iron and aluminum alloys.
YL10.2	It is suitable for machining common steel, cast iron, stainless steel, heat‐resistant steel, nickel-based alloys, titanium alloys, etc. It is recommended for making conventional tools, such as twist drills, end drills, screw taps, etc.
XF30	It is suitable for machining titanium alloy, heat‐resistant alloys, stainless steel, hardened steel, grey cast iron, glass‐fiber Reinforced plastics, composite materials, etc. It is recommended to make drills and milling tools, etc.
