    K20 6.5mm Diameter Solid Carbide Ground Rods For Drilling Aluminum Alloy

    Ask Lasest Price
    Brand Name : OUQI
    Model Number : Cut-to-length carbide rods
    Certification : ISO9001:2008 ISO14001:2004
    Price : negotiable
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 5000kgs per month
    Delivery Time : Standard products in one week
    • Product Details
    • Company Profile

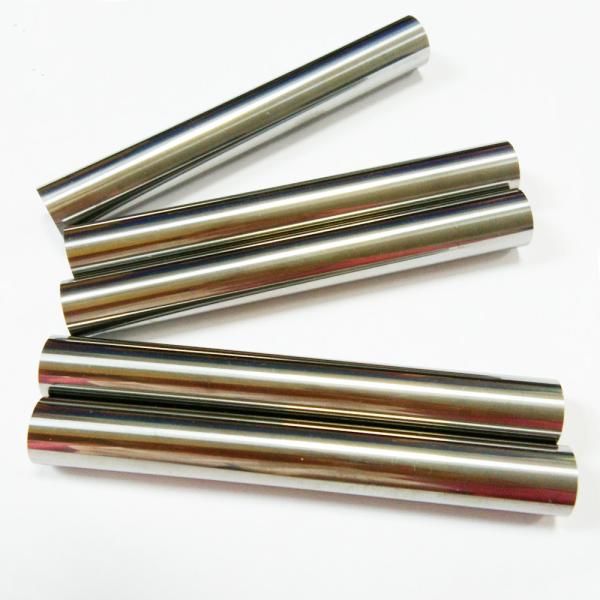

    K20 6.5mm Diameter Solid Carbide Ground Rods For Drilling Aluminum Alloy

    K20 6.5mm solid ground carbide rods for drilling aluminum alloy


    GradeYF06
    Density14.86
    T.R.S3800
    Hardness HV301800
    Properties & ApplicationsUsed for manufacturing drills with big diameters of 3.2-6.3mm for machining PCB, drills of 0.8-3.2mm, and mills, and it is also suitable for making solid carbide tools for machining aluminum alloy, plastic, PTFE, and compound materials, such as carbon fiber, etc.

    Dimension:

    Outer Diameter: 6.50mm

    Tolerance of OD -0.007

    Length: 38.5mm

    Tolerance of Length:+0.1/+0.2

    Roughness: Ra0.2 polished

    K20 6.5mm Diameter Solid Carbide Ground Rods For Drilling Aluminum Alloy


    Regular size for small drills:

    Diameter mmLength
    DToleranceLTol.
    3.250/+0.0538.7± 0.20
    3.250/+0.0538.5± 0.20
    3.500/+0.0538.5± 0.20
    4.000/+0.0538.5± 0.20
    4.500/+0.0538.5± 0.20
    5.000/+0.0538.5± 0.20
    5.500/+0.0538.5± 0.20
    6.000/+0.0538.5± 0.20
    6.500/+0.0538.5± 0.20
    3.50+0.2/+0.512.8± 0.10
    4.00+0.2/+0.512.8± 0.10
    4.50+0.2/+0.512.8± 0.10
    5.00+0.2/+0.512.8± 0.10
    5.50+0.2/+0.512.8± 0.10
    6.00+0.2/+0.512.8± 0.10
    6.50+0.2/+0.512.8± 0.10
    6.85+0.2/+0.512.8± 0.10


    Description:

    • 100% virgin material, no recycled material
    • Spray drying tower and HIP sintering furnace
    • Constant excellent quality
    • Large stock for all sizes, the regular products can be shipped in 3 days, and the special rods can be ground in one week.
    • 100% inspected before delivery. The inspection including raw material and dimension report will be sent you before delivery
    • Excellent grinding quality, Straightless could be 0.05 or 0.02.

    Carbide grades

    ISO-RangeCo (%)WC incl.
    Doping (%)
    Density
    (g/cm3)
    HV 30
    (N/mm2)
    HRAT.R.SKIc* (Shetty)
    (MNm-3/2)
    Application
    K1069414.8190093.8> 39009Unalloyed and hardened steels
    Non-ferrous metals
    Aluminium alloys
    Cast iron
    Composites (CFRP and GFRP)
    K10 - K2089214.6171092.5> 40009.5Unalloyed and hardened steels
    Non-ferrous metals
    Non-ferrous metals
    Plastics
    K20 - K3099114.3168092.2> 39009High hardness materials
    Aluminium alloys
    Cast iron
    Graphite
    K30 - K40109014.5161091.9> 420010.5Steels
    Corrosion and heat resistant steels
    Stainless steels
    Non ferrous metals
    Nickel based alloys
    Aluminium alloys
    K40 - K50128814.1168092.3> 440010Steels
    Corrosion and heat resistant steels
    Stainless steels
    Non ferrous metals
    Titanium alloys
    K40 - K50138713.9170092.4> 40009.5Corrosion and heat resistant steels
    Non ferrous metals
    Nickel based alloys
    Titanium alloys

    General Tolerance for ground carbide rods

    General tolerance for the h6 finished ground solid carbide rods
    DiameterTolerance μmLengthToleranceStraightnessToleranceCircularityTolerances
    3.0-6/0100.0+0.5/+1.04.00.07<3,02,0 micron
    3.0-6.0-8/0100.0-165.0+1.0/+2.54.5-5.00.063,0- 6,02,5 micron
    6.0-1.0-9/0165.0-335.0+1.0/+6.05.5-120.056,1-10,03,0 micron
    10.0-18.0-11/012.50.0410,1-18,03,5 micron
    18.0-30.0-13/018,1- 30,04,0 micron
    30.0-50.0-16/030,1- 50,05,0 micron

    General tolerance for the h5 finished ground solid carbide rods
    DiameterTolerance μmLengthToleranceStraightnessToleranceCircularityTolerances
    3.0-4/0100.0+0.5/+1.04.00.07<3,02,0 micron
    3.0-6.0-5/0100.0-165.0+1.0/+2.54.5-5.00.063,0- 6,02,5 micron
    6.0-1.0-6/0165.0-335.0+1.0/+6.05.5-120.056,1-10,03,0 micron
    10.0-18.0-8/012.50.0410,1-18,03,5 micron
    18.0-30.0-9/018,1- 30,04,0 micron
    30.0-50.0-11/030,1- 50,05,0 micron
